The 8-inch Concentric Driver
Boasting a custom-tooled eight-inch concentric driver and 1.25-inch soft-dome tweeter, this speaker offers a point-source system that delivers impeccable control, tonal balance, and precise imaging. The woofer cone acts as a waveguide for the tweeter, maximizing the tweeter efficiency and matching directivities.
Whether you prefer relaxing, acoustic tunes, or more aggressive and electric music, the SourcePoint 8 delivers outstanding performance that will touch your soul and inspire your emotions. It conveys recordings with exceptional detail, specificity, and cleanliness while also delivering the meatiness, liveliness, and range of a much larger speaker.
Twin-Drive High-Flux Magnet System
The SourcePoint 8 delivers exceptional performance thanks to its innovative Twin-Drive high-flux neodymium magnet system. We didn't just optimize the woofer and tweeter's frequency response, we also prioritized reducing distortion in the motor structure of the drive unit. By designing the motor to minimize distortions, we've ensured that the system generates minimal additional frequencies beyond the original signal.
The Twin-Drive system creates a fully symmetrical magnetic field, resulting in extremely low intermodulation distortion (IMD) and a pure, accurate sound.
The SourcePoint series represents a tour-de-force in design and engineering. Offering the same level of sonic excellence as its larger sibling, the SourcePoint 8 is a versatile and manageable package that is sure to delight audiophiles of all stripes. Its outstanding performance, elegant design, and exceptional engineering make it a worthy addition to any music lover's listening room.
ELECTRICAL SPECS
Frequency Response
47Hz-30kHz
Nominal Impedance
8 Ohms, 6.4 Ohms minimum
Sensitivity
87dB/2.83V/1m
Crossover Frequency
1.6kHz
Minimum Recommended Power
30W
Max Power Input
150W
PHYSICAL SPECS
Dimensions (WxHxD)
11.4" x 18" x 13.2" with grille
(290 x 456 x 335)
11.4" x 18" x 12.6" without grille
(290 x 456 x 320)
Weight
27.9 lb / 12.7kg each
FEATURES
• 8-inch concentric driver
• 1.25-inch wide roll soft dome tweeter
• 2-way vented box
• Satin Walnut real wood veneer, Satin Black Ash real wood veneer, or painted Satin White

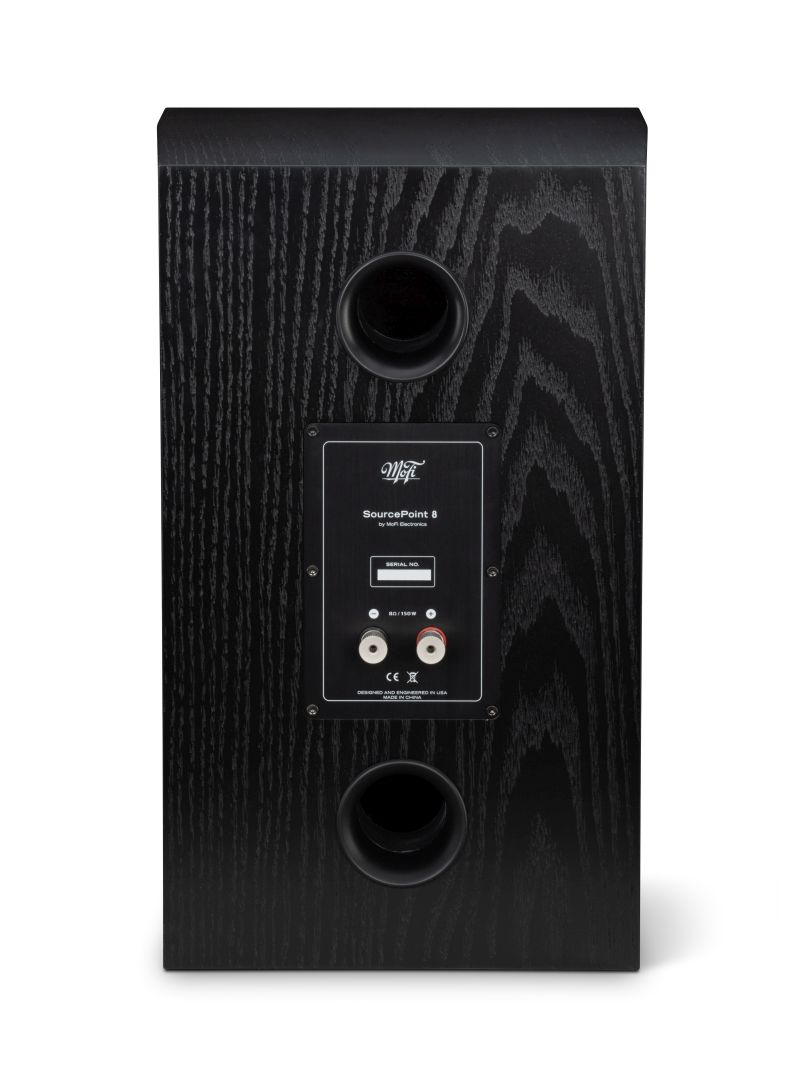

• 5-way binding posts
• Magnetic grilles
