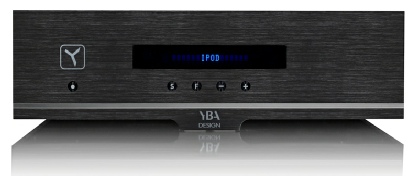

Design WA202




The FM/AM Receiver has just about everything you could want! With a healthy 50 W into 8 Ohms, the ability to store up to 80 preset stations (40 FM, 40 AM), an IR in/out capability lending its inclusion into custom audio applications, 4 RCA inputs plus a pre-out option, the highly attractive Design receiver is a truly great buy.

Output power: Stereo receiver 50W/8Ω
S/N: >90dB
Frequency response: 20 Hz - 20 kHz
THD & N (20Hz-20kHz): <0.01%
Tuner: AM/FM with RDS
Tuner Presets: 40 AM 40 FM

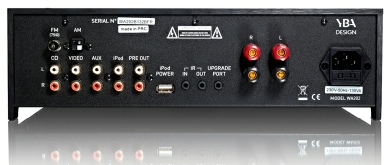

Inputs: 4 RCA
Pre-out: Yes (RCA)
Outputs: 1 Pair of speakers
USB connection: Type B, 5V, 600 mA maximum
Power supply: Linear power supply with high performance type El transformer 160VA
Custom Installation: IR in IR out
Remote control: Yes
Finish: Black
Dimensions w x d x h: 320 mm x 280 mm x 110 mm
Weight: 6.7 kg
