... than already has been achieved with the soulution 710 stereoamplifier, seems to be impossible. Still, the new soulution 711 significantly outperforms its predecessor in all disciplines! The new "switched mode" power supply technology brings the soulution 711 to new level of performance. Improvements on the test bench get confirmed by the performance in the listening room. Words alone cannot convey the performance and sheer acoustic presence of the soulution 711 stereoamplifier. We’ve combined the ultimate technical specification and highest possible performance with just one aim - to liberate the best the music has to offer.
Listen like never before. Marvel. Enjoy. Without limits
The ideal amplifier is perfectly load stable, 100% level and phase accurate, and has no long signal paths. It should not use tricks like over amplification and very high negative feedback to achieve good results in the lab but poor sonic performance in the listening room. The soulution 711 stereoamplifier combines extreme speed with an ultra-wide bandwidth (1MHz/-3dB) and a high current capability far beyond that of valves and output transformers. A unique and sophisticated circuit design opens up sonic qualities once considered incompatible: Precision, Velocity, Stability and Power. In the soulution 711 they are brought together for the first time – all in the pursuit of musical perfection. The soulution 711 is closest of all to this ideal. It can provide up to 300 Watt continuous power into 4 Ω and more than 6'000 Watt transient power per channel. More than enough to breathe new sonic life into even the most demanding, low-efficiency loudspeakers.
Layout
Throughout, the soulution 710 is designed as a consistent dual-mono layout. Both left and right channels feature identical audio amplifiers, each with its own high efficiency power supply. The housing forms an integral part of the design providing cooling for the output stages and damping to minimize microphonic interference.
Key Features:
- Audio grade "Switched Mode" power supply (4 x 600VA )
- More than 1'000'000 microFarad storage capacity in the power supply unit
- Peak current rating of more than 120 Ampere
- Impulse power rating > 6'000 Watt
Reddot Design award
In 2006 the timeless design of the soulution Series7 products has been rewarded with the famous and coveted reddot design award. The international jury was especially impressed by its plain and unobtrusive design that does not show any visible cooling fins or screw connectors... reddot award
Philosophy
The ideal amplifier is perfectly load stable, 100% level and phase accurate, and has no long signal paths. It should not use tricks like over amplification and very high negative feedback to achieve good results in the lab but poor sonic performance in the listening room. The soulution 711 stereoamplifier combines extreme speed with an ultra-wide bandwidth (1MHz/-3dB) and a high current capability far beyond that of valves and output transformers. A unique and sophisticated circuit design opens up sonic qualities once considered incompatible: Precision, Velocity, Stability and Power. In the soulution 711 they are brought together for the first time – all in the pursuit of musical perfection. The soulution 711 is closest of all to this ideal. It can provide up to 300 Watt continuous power into 4 Ω and more than 6'000 Watt transient power per channel. More than enough to breathe new sonic life into even the most demanding, low-efficiency loudspeakers.
Layout
Throughout, the soulution 710 is designed as a consistent dual-mono layout. Both left and right channels feature identical audio amplifiers, each with its own high efficiency power supply. The housing forms an integral part of the design providing cooling for the output stages and damping to minimize microphonic interference.
Amplifier

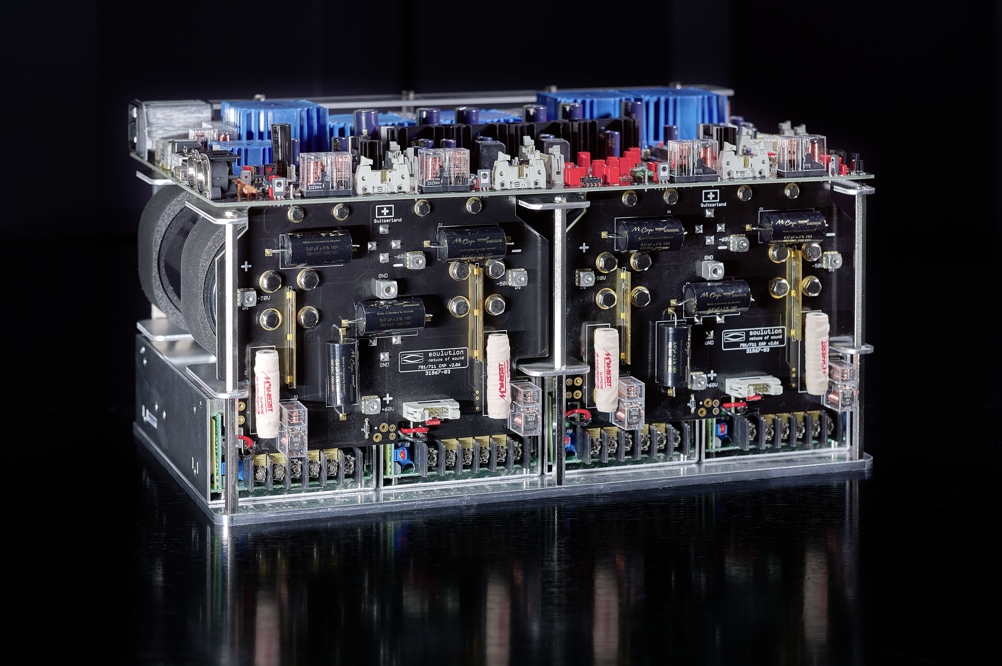

From the input the soulution 711 first buffers the music signal. A high performance correction amplifier is then used to capture and correct any deviations in the signal, very quickly and very precisely. Ultra wideband amplification using no feedback loops follows, a less than 10 nanosecond transit time and level accuracy to within 0.1dB ensuring signal purity. The whole is housed within a sealed module, maintaining a common temperature across all stages to further guarantee precision. The output stage comprises 14 power transistors per channel, all mounted onto a massive copper rail which is temperature controlled for a constant quiescent current. The soulution 711‘s impressive low level signal handling is reflected in its raw power delivery. Current levels of 120A and more are readily attainable.
Power supply
A stable supply voltage is key to a good sounding amplifier. The new power supply of the soulution 711 stereoamplifier is based on audio grade "switched mode" modules. Four units with 600VA each combined with highend storage capacitors (>1'000'000 microFarad) provide enough power reserves that allow the 711s reproduce even very complex music signals with ease. Circuitry that does not process audio signals should not be able to influence them. That’s why we use dedicated power supplies for the ancillary stages.
Operation
Power, mode and input functions are operated from front panel buttons. Power toggles between on and off states. Mode transfers control of turn-on to an associated preamplifier via soulution’s LINK system. Input selects the desired input and mutes the others. The front panel display indicates operating status. Comprehensive built-in protection ensures safe operation and long life. This includes a level limiter (soft clipping) as well as over current and overheat protection.

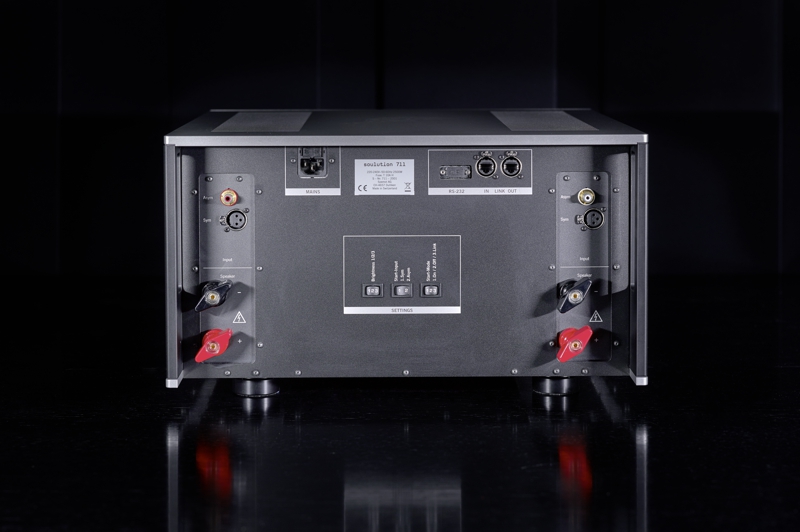

Connectors and start-options
The stereoamplifier 711 does have balanced and unbalanced inputs. Switches at the back of the amplifier allow to define the start options for the brightness of the display, the start-condition of the amplifier and the operation mode (mono or bi-amping).
Specifications
Powerrating
Audio power rating
2 × 150 W @ 8 Ω
2 × 300 W @ 4 Ω
2 × 600 W @ 2 Ω
Standby consumption: <0.5 W
Idle consumption: 180-200 W
Output
Impedance: 0.001 Ω
Voltage max. rating: 31 Vrms
Current max. rating: 120 A
Peak pulse power rating: ~6'000 W
Input
Impedance balanced: 4.7 kΩ
unbalanced: 10 kΩ
Sensitivity: 1.55 Vrms
Performance
Volatge gain: +26 dB
Frequency response: DC - 1 MHz
Slew rate: 400 ns
Distortions (THD+N) @ 1kHz: <0.001 %
Signal-to-Noise-Ratio (SNR) @ 1kHz: >108 dB
Corsstalk @ 1kHz: < -120 dB
Damping factor @100kHz: > 10'000

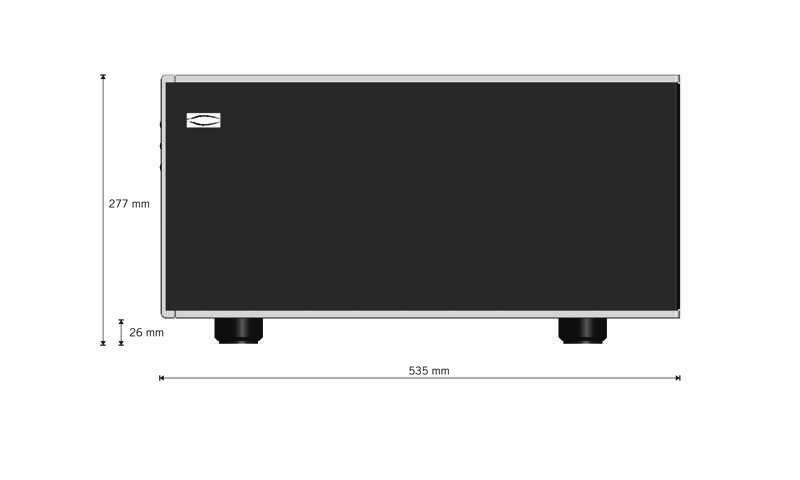

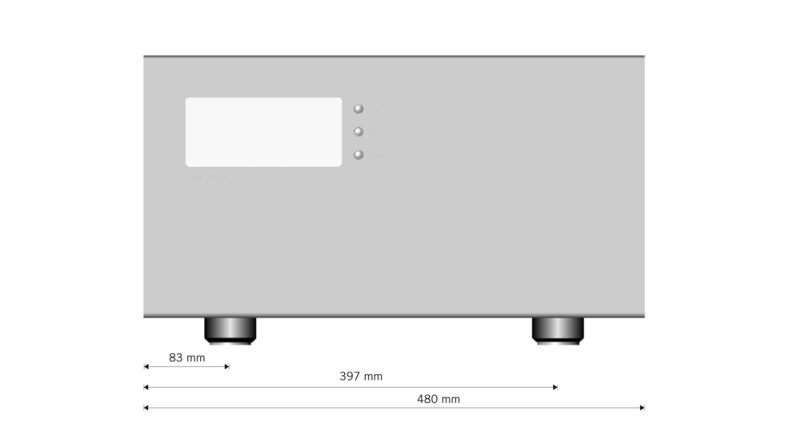

Dimensions
Lenght x Width x Height: 535 x 480 x 277 mm
Weight: 65 kg
