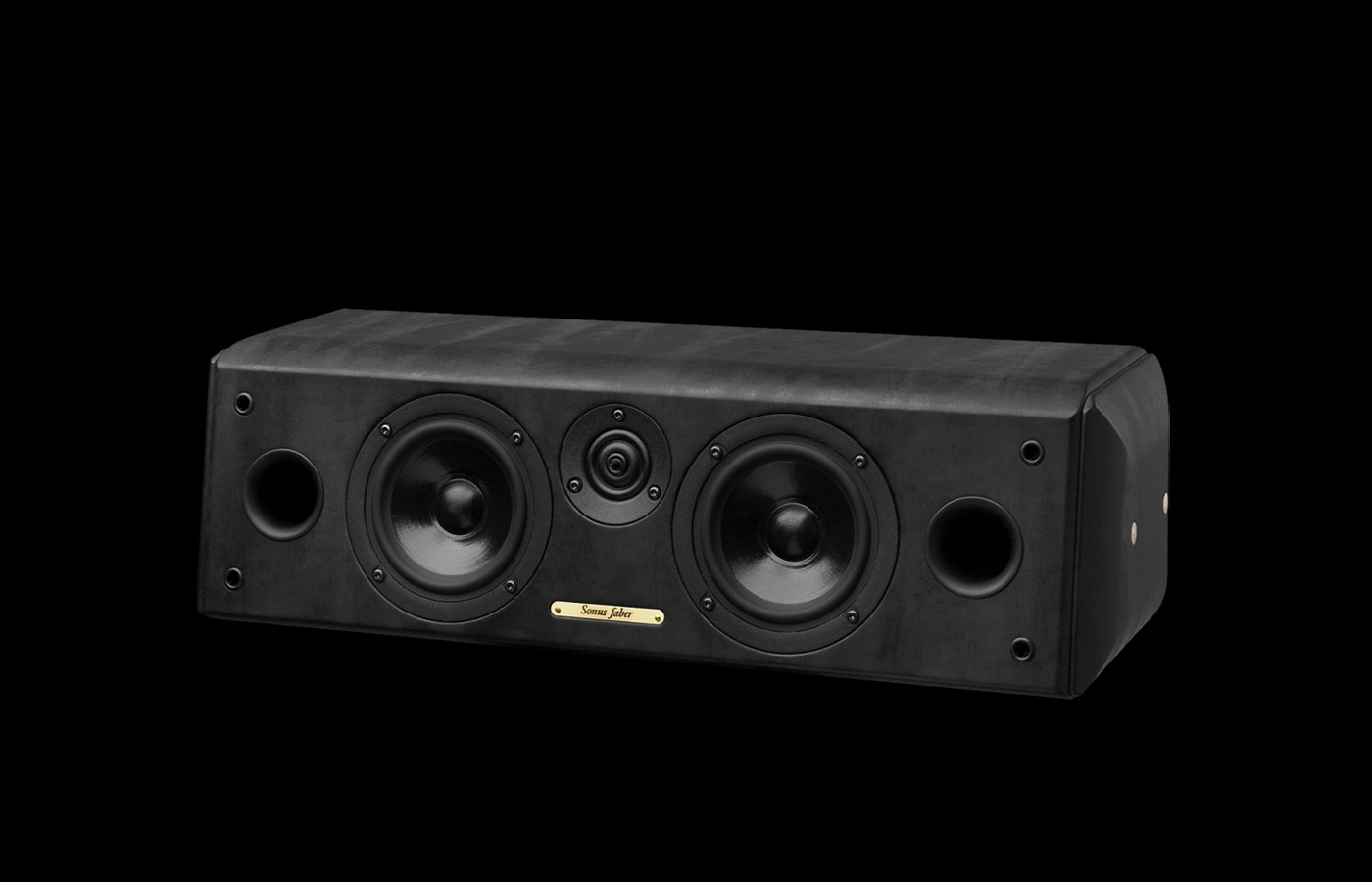

SYSTEM: 2 way vented box loudspeaker.

CABINET: Construction with decoupled side panels for resonances andstanding waves control.

TWEETER: 25 mm ultra dynamic ring radiator-driver, neodymium magnetsystem.

MID-WOOFERS: 110 mm coated cellulose cone drivers.

CROSS-OVER: Non-resonant third order design, optimized phasecharacteristics for optimal space/time performance, cross-over point 2.000 Hz.

FREQUENCY RESPONSE:55 Hz – 25.000 Hz, tuning ports included.

SENSITIVITY: 89 dB SPL (2.83 V/1m).

NOMINAL IMPEDANCE: 8 ohm.

POWER HANDLING: 20W - 100W, without clipping.

AVAILABLE FINISHES: Black, White, Walnut, Leather.

DIMENSIONS: 165 x 540 x 225 mm (HxWxD).

WEIGHT: 7.3 Kg – net weight / 9.5 Kg – shipping weight.
